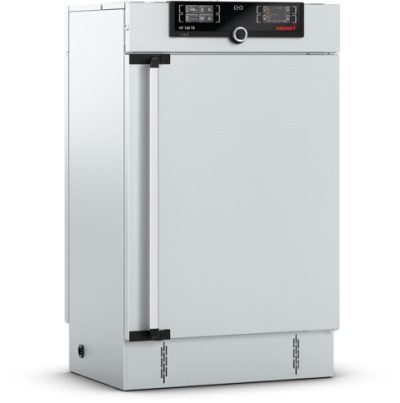

Pass-through oven UF160TS

Pass-through oven UF160TS

Pass-through oven UF160TS The Memmert heating oven with fully insulated stainless steel door on both sides saves time during loading and reduces the risk of contamination, specially when handling sensitive load between grey and clean rooms. On this page, you can find all the essential technical data on our pass-through oven. Our customer relations team will be pleased to help if you want further

Product Details
- Brand / Model: Memmert / UF450TS
- Cabinet Type: Pass-through heating oven (Double-door oven)
- Internal Capacity (Volume): 449 liters (15.9 cu. ft.)
- Internal Dimensions (W x D x H): 1040 x 720 x 600 mm (40.9" x 28.3" x 23.6")
- External Dimensions (W x D x H): 1224 x 1233 x 784 mm (48.25" x 48.5" x 30.75")
- Shelves (Grids): 2 included (max. capacity: 8 shelves) / Load capacity: max. 30 kg (66 lbs) per shelf
- Unit Weight: Approx. 213 kg (470 lbs)

Temperature Control and Air Circulation System

- Temperature Range: From +10 °C above ambient temperature to +250 °C

- Display Resolution: 0.1 °C (up to 99.9 °C) / 0.5 °C (100 °C and above)

- Air Circulation System (Convection): Forced Air Circulation (UF) with adjustable fan speed

- Temperature Sensors: Two 4-wire Pt100 Class A sensors for redundancy and mutual monitoring

- Control System (Control Panel): TwinDISPLAY featuring two high-resolution TFT color touchscreens

+ HeatBALANCE Function: Adjustable heating distribution between top and bottom zones (range: -50% to +50%)

- Safety Systems and Connectivity

- Overtemperature Protection (AutoSAFETY): ASF (AutoSafety) system with audible and visual alarms; automatic shutdown in the event of temperature anomalies

- Door Locking System: Dual-door design (front and rear) with stainless steel insulation and a lock mechanism preventing simultaneous opening

- Connectivity and Software: Ethernet and USB ports; compatible with AtmoCONTROL software for programming and data logging

- Electrical System: 400 V, 3-Phase, 50 Hz (power rating approx. 4,800 W)
