Water bath WTB6

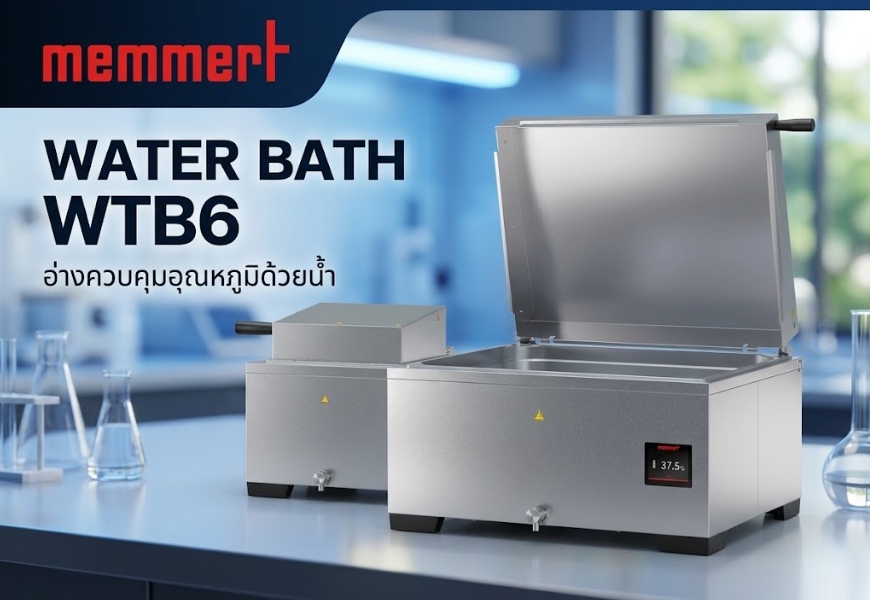

Memmert WTB6 Water Bath
The Memmert WTB6 is a laboratory water bath designed to control and maintain the temperature of samples, solutions, culture media, and materials requiring uniform heating. It is suitable for research, testing, quality control, and general laboratory applications.

The WTB6 is a compact model within the Memmert WTB series, featuring a capacity of approximately 7.5 liters, an easy-to-clean stainless steel tank, and a 3.5-inch color touchscreen control system that simplifies temperature setting and monitoring.

Key Features of the Memmert WTB6
Precise Temperature Control
The WTB6 supports a temperature setting range of +10 to +100 °C with a setting resolution of 0.1 °C. The operating temperature range extends from approximately 5 °C above ambient temperature up to +100 °C (when used with a lid under specified conditions).

Technical Specification

Temperature
- Temperature sensor  : digital temperature sensor, mounted on the outside of the bath
- Temperature : Setting Celsius / Fahrenheit Working temperature range at least 5 above ambient to +100 (with cover, depending on ambient pressure)
- Setting temperature range : +10 to +100 °C
- Setting accuracy temperature : 0.1 °C
Control technology
- Calibration : 2-point calibration
- Controller : intuitive 3.5" colour graphic display with touch screen
- Controller : digital display of set and actual temperature and of (remaining) programme timeSafety
Safety
- Temperature control : two-stage safety system to prevent overtemperature (pressure sensor for level monitoring, thermal fuse for heating shutdown in case of error)
- Temperature control : individually adjustable overtemperature alarm, visual and acoustic
- Temperature control : Independent temperature limiter to switch off the heating in case of failure
- Autodiagnostic system : microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

Heating concept
- Heating : corrosion-proof large-area heating on the outside of the interior

Standard equipment
- Cover : Stainless steel gable cover
- Drain system : innovative drain system - easy to empty
- Timer : digital timer from 1 min. up to 99 hours 59 min., visual and acoustic
Stainless steel interior
- Interior : Deep-drawn stainless steel tray (stainless steel W.St. 1-4301), without corners and edges for easy cleaning incl. central drain (no disturbing installations)

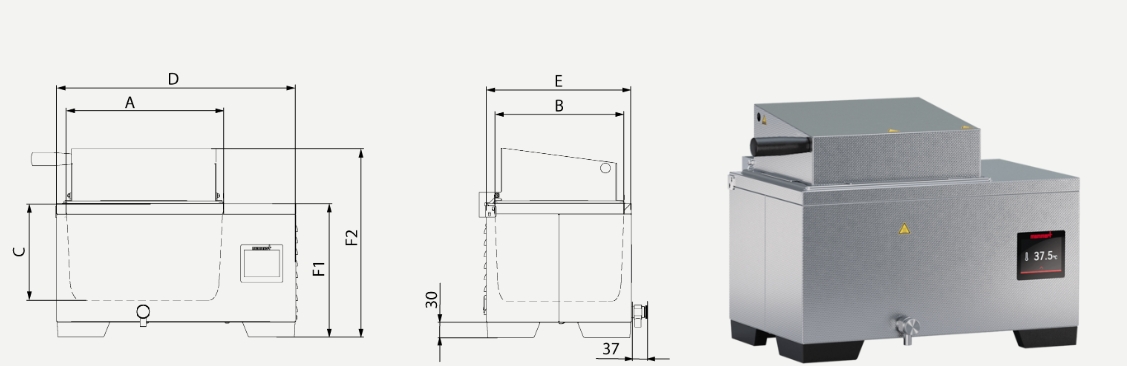

- Dimensions : l(A)x w(B)x h(C): 277 x 217 x 150 mm
- Volume : 7.5 l
- Liquid level min. : 40 mm
- Liquid level max. : 114 mm

Ambient conditions
- Installation : The vent openings in the left and back side must remain unobstructed. The distance to the wall must be at least 100 mm on the sides and at least 150 mm to the rear. The minimum spacing from the top of the bath to the next ceiling is 750 mm.
- Ambient temperature : +5 °C to +40 °C
- Humidity rh : max. 80 %, non-condensing
- Overvoltage category : II
- Pollution degree : 2
