fixed gas detectors OmniPoint

Fixed gas detectors OmniPoint

The OmniPoint  transmitter is a comprehensive gas detection solution designed to operate
in hazardous locations and support multiple sensors in the detection of toxic, oxygen, and flammable gas hazards.

OmniPoint utilizes multiple sensor technologies to meet diverse gas detection challenges in
a variety of global industries. Full color, touch key interface and Bluetooth® enabled operation make setup and maintenance intuitive.

Support for up to three sensors makes OmniPoint both flexible and scalable to meet your safety requirements.

Features & Benefits:
- Flexible transmitter monitors up to three sensors

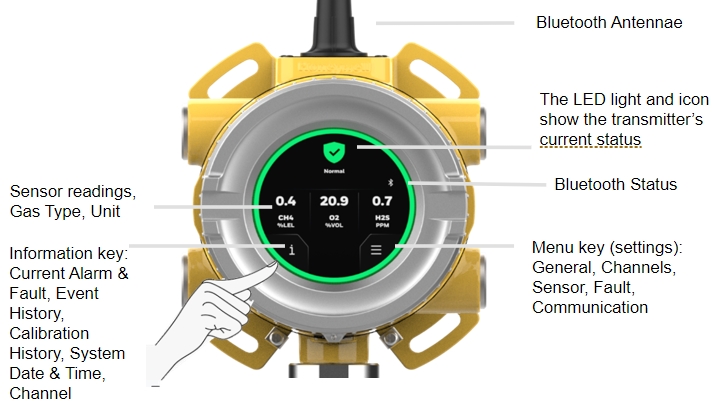

- Touch key user interface simplifies the operation, configuration, and maintenance.
- Full color LED display and different light rings provide a clear indication status.
- Intelligent sensor module design reduces cost by replacing only the plastic sensor cartridge
- Optional Bluetooth® App enables easy configuration and maintenance work

Quick Specs
- Wide temperature range from -55°C to 75ºC (-67°F to 167°F) for use in tough environments.

- Integral 4-point mounting allows more flexible installation options

- Multiple outputs including 4-20mA, Relays, HART®, and Modbus communication all standard

Specifications
Dimensions & Weight
Weight range

-Transmitter (enclosure only): Aluminum alloy: 2.48 kg (5.47 lb). 316 stainless steel: 5.37 kg (11.84 lb)

-Transmitter with display module: Aluminum alloy: 2.78 kg (6.12 lb). 316 stainless steel: 5.70 kg (12.50 lb) XPIS sensor module with cartridge: 0.80 kg (1.76 lb)

-XP sensor module with cartridge: 0.69 kg (1.52 lb)

Material
-Enclosure: Five-coat marine finish painted aluminum alloy or 316 stainless steel

Industry
-Energy
