The UltraRAE 3000 Gas Detector

"The UltraRAE 3000 is the most advanced LPG gas detector and compound-specific photoionization detector (PID) monitor on the market. Its extended range of 0.01 to 10,000 ppm in VOC mode and 10 ppb to 200 ppm in benzene-specific mode makes it an ideal tool for applications ranging from preliminary screening between refineries and plant maintenance to hazardous materials response, marine oil spill response, and refinery downstream monitoring."

- Dual detection modes for total benzene exposure assessment: 60-second snapshot or 15-minute STEL measurement
- High sensitivity to benzene (as low as 10 ppb) provides a lower detection range for future benzene exposure limits
- Reduced risk of false alarms with advanced specation methods
- Integrated VOC measurement mode with extended range of 0.05 to 10,000 ppm

Key Features
- Proven PID technology
- 3-second response in VOC mode or 60-second response in compound-specific mode
- Extendable range up to 10,000 ppm (in VOC mode) with improved linearity
- Built-in humidity sensor
- Automatic temperature-controlled sampling time calculation
- High specificity readings, integration of 9.8eV UV lamp and RAE-Sep™ benzene lamp

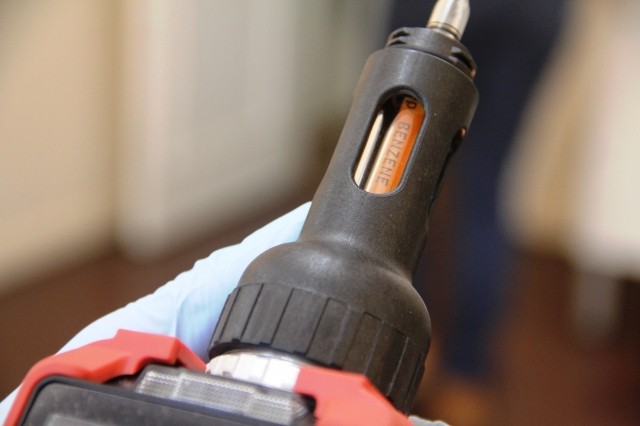

- Novel sampling probe design allows immediate visualization of pipe penetration
- Versatile VOC or benzene-specific mode
- Real-time wireless via Bluetooth - Built-in and optional RAELink3 portable modem
- Integrated RAE system correction factor list for over 200 compounds

Easy to use
- Large graphic display
- Multi-language support
- Easy access to lamps, sensors, and batteries in seconds without tools

Low total cost of ownership
- Inexpensive analysis using low-cost RAE-Sep lamps

Applications
- Pre-entry screening of confined spaces during refinery and plant maintenance
- Hazardous material response
- Seawater spill response
- Downstream refinery monitoring
- Plant overhaul

Monitor only includes:
- PGM-7360 UltraRAE 3000 monitor
- Built-in wireless communication module
- Data logging with ProRAE Studio II Package for Windows® XP, Windows® Vista, or Windows® 7
- Travel charger
- RAE UV lamp and RAE-Sep™ lamp
- Flex-I-Probe™ - Short probe
- External filter
- Red rubber boot
- Alkaline battery adapter
- Lamp cleaning kit
- Tool kit
- Lithium-ion (Li-Ion) battery with universal AC/DC charger and universal plug set
- Operation CD-ROM
- User and maintenance manual
- Soft leather carrying case

Specifications

Weight: 26 ounce av 738 grams
Instrument Size: 10” L x 3.0” W x 2.5” H (25.5 x 7.6 x 6.4 cm)

RANGE
Humidity Range: 0%-95% percent
Sensor Range: VOC (0-10000ppm), Benzene (0-200ppm), Butadiene (0-200ppm)

Maximum Temperature: 50 degrees Celsius 122 degrees Fahrenheit
Minimum Temperature: -4 degree Fahrenheit -20 degree Celsius

Datalogging: Standard 6 months at one-minute intervals

Gas Type: VOC, Benzene, Butadiene
Ingress Protection: IP65
