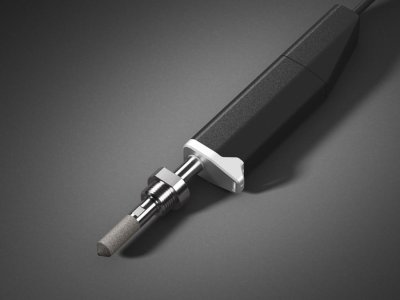

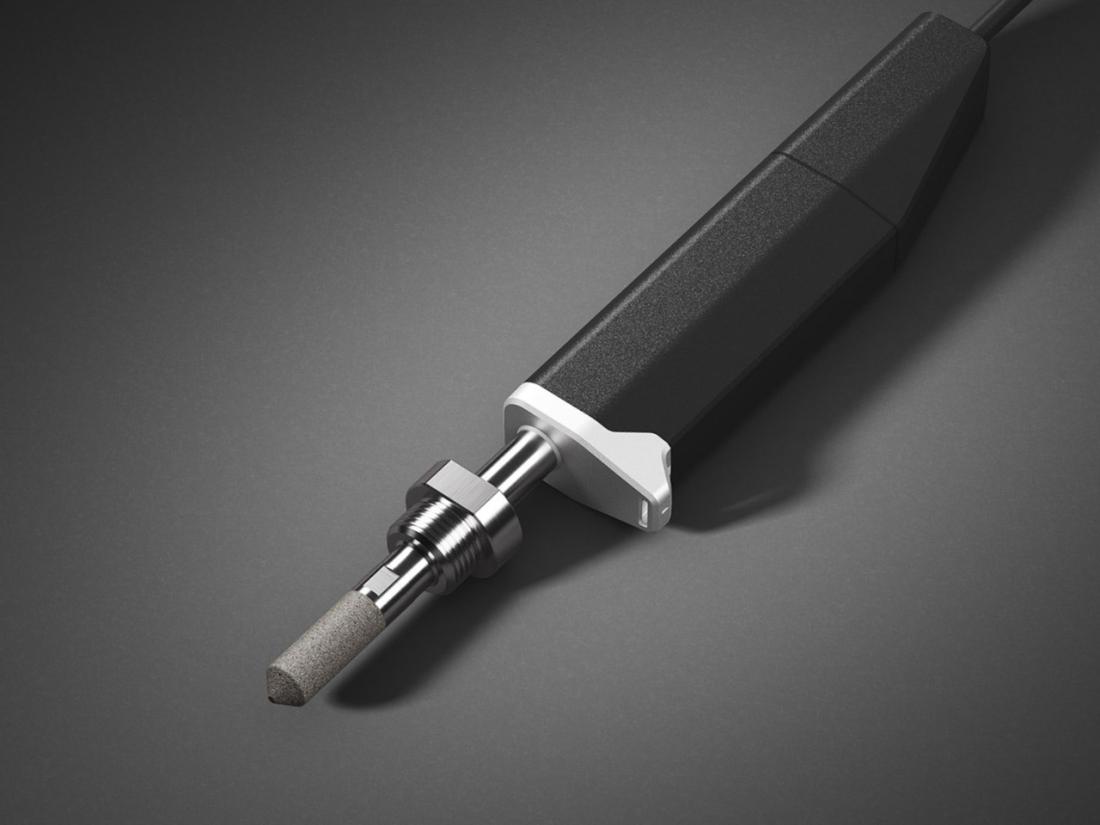

DMP80 DRYCAP handheld probe for dew point and temperature

DMP80 DRYCAP handheld probe for dew point and temperature

The DMP80 probes are compatible with Indigo80 handheld device. Part of the Indigo family of probes and transmitters, the DMP80 is optimized for portable data logging and measurement spot-checking of process dew point measurements in a wide range of temperatures and pressure ranges. Robust against particulate contamination, condensation, oil vapor, and most chemicals, the DMP80 provides fast reaction time, long-term stability, and unmatched performance in dynamic and low dew point applications. For device analytics and configuration, the DMP80 probes can be connected to Vaisala Insight software for Windows

Features
Portable design optimized for industrial spot-checking and field calibration
Dew point measurement accuracy up to ±2 °C (±3.6 °F) Td/f
Wide dew point measurement range
Sensor purge improves long-term stability and chemical resistance
Condensation-tolerant
Compatible with Indigo80 handheld indicator and Insight PC software
Calibration certificate included
DMP80A measurement performance Dew point
Sensor DRYCAPâ 180S
Measurement range 40 +60 °C (40 +140 °F) Td/f
Accuracy Up to ±2 °C (±3.6 °F) Td/f
Response time 63 % [90 %]:
From dry to wet 5 s [10 s]
From wet to dry 45 s [5 min]
Temperature
Measurement range 0 +60 °C (+32 +140 °F)
Accuracy ±0.2 °C (±0.36 °F) at room temperature
Temperature sensor Pt100 RTD Class F0.1 IEC 60751
Mixing ratio
Measurement range (typical) 0150 g/kg (01050 gr/lbs)
Accuracy (typical) ±12 % of reading
Absolute humidity
Measurement range 0130 g/m3
Accuracy (typical) ±10 % of reading
