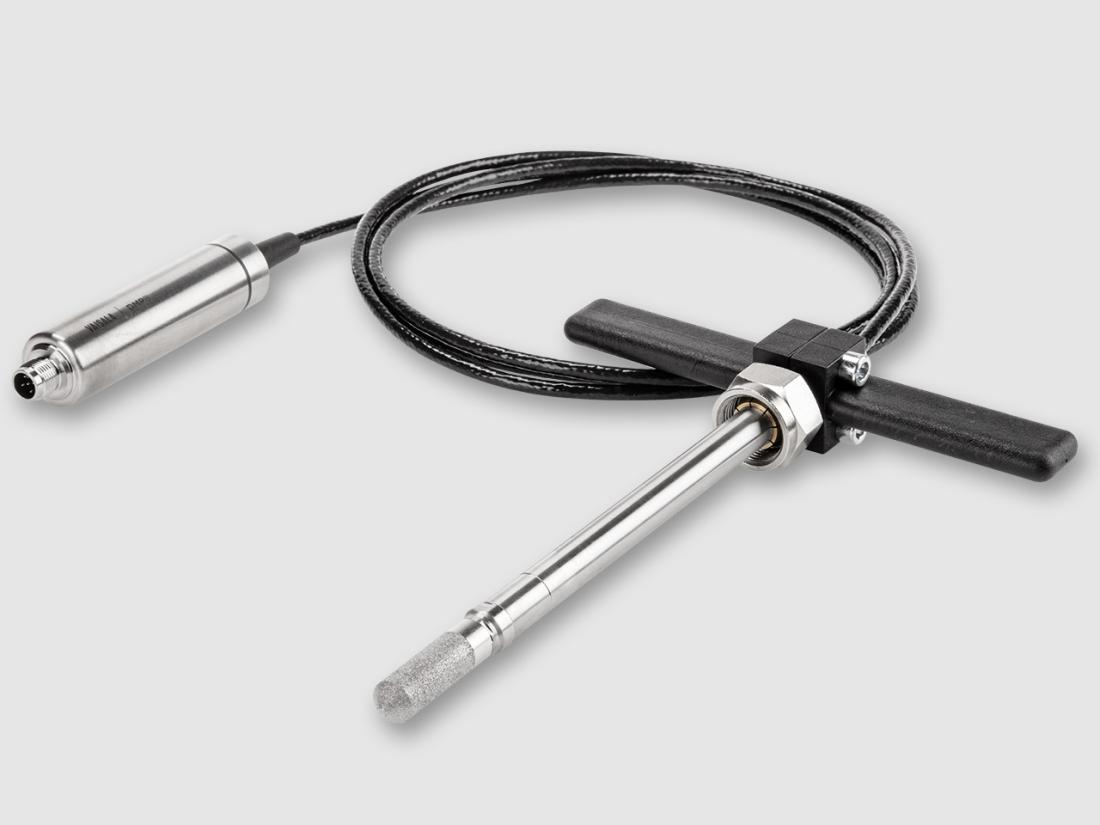

Dew Point and Temperature Probe DMP8
with adjustable installation depth for pressurized pipelines <40 bars
Vaisala DRYCAP® Dew Point and Temperature Probe DMP8 is designed for industrial low-humidity applications with pressure up to 40 bars.
Typical applications include industrial drying, compressed air systems, and applications in the semiconductor industry.

DMP8 can be installed in a 1/2" NPT or ISO thread with adjustable insertion depth. An optional ball-valve installation kit allows the probe to be inserted or detached from a pressurized line.

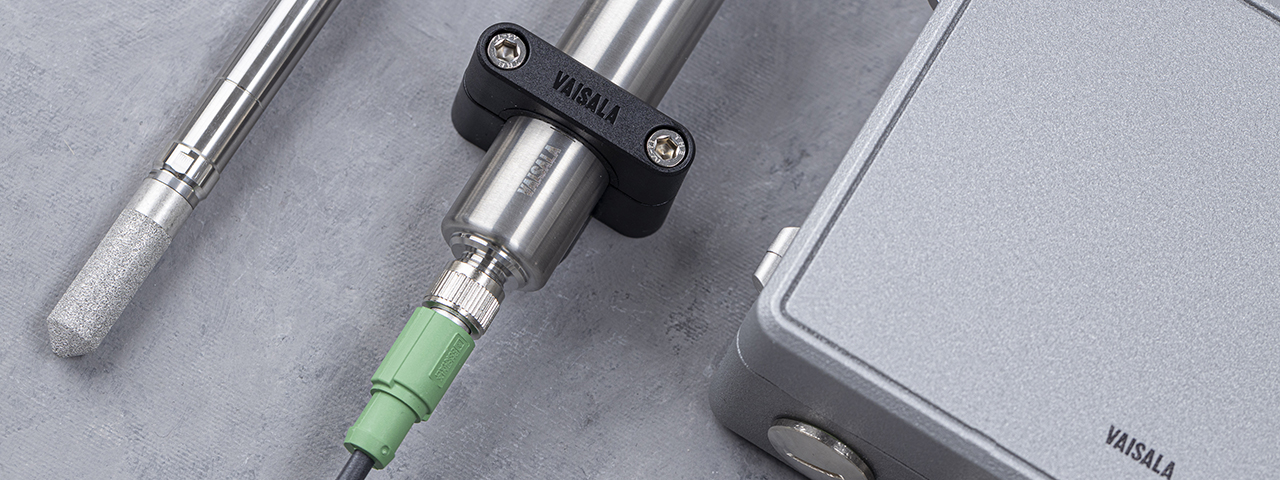

DMP8 is part of the Indigo family and is compatible with Indigo500, Indigo300 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration and self-calibration.

Features
Dew point measurement range -70 ... +80 °C (-94 ... +176 °F)
Dew point measurement accuracy up to ±2 °C (±3.6 °F)
Operating pressure 0 ... 4 MPa (0 ... 40 bar)
Temperature accuracy up to 0.1 °C (0.18 °F)
Withstands condensation, oils, dust and most chemicals
Sensor purge provides superior chemical resistance
Includes traceable three-point calibration certificate
Modbus RTU over RS-485 for flexible connectivity
Compatible with Indigo series transmitters
Long (two-year) calibration interval for easy maintenance
